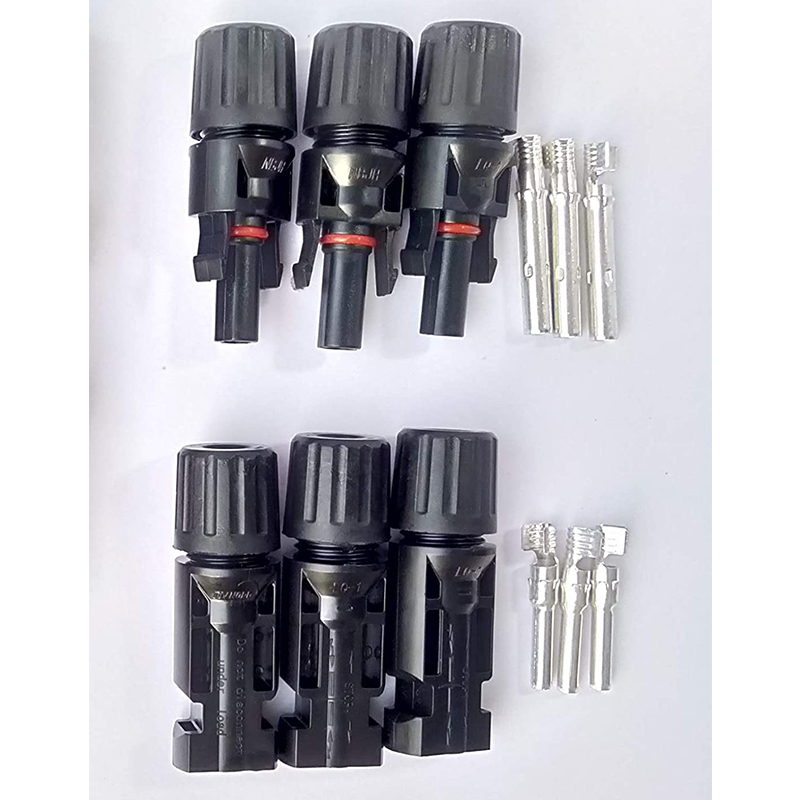

3 Pair Male and Female MC4 connector. Compatible with PV cables with different insulation diameters Designed for a wide range of DC Auto-lock equipment of male and female points render connections easy and reliable applications Waterproof – IP67 Class Protection and high current-carrying capacity Connector adopts touch and insertion of reed with inner-knob type MC4 connectors are used to connect multiple solar panels or groups of solar panels together in a solar field and are typically used in parallel applications. The metal pin is made from high-quality machined copper and a sealed tip that can ensure excellent electrical contact. Technical data: Insulation material: PC Rated current:30A Rated voltage:1500V Test voltage:6KV(50Hz,1Min) Contact material: copper, tin-plated Contact resistance:3m Degree of protection: IP67 Safety class: II Flame class: UL94-V0 Insertion force: 50N Withdrawal force: 50N Ambient temperature range:-40~ 85 Suitable cable:2.5~6.0mm2AWG14/12/10 Why would you choose the SPARKEL Solar Panel Cable Connectors? SPARKEL Cable Connectors are made of the highest quality materials to ensure long-term durability, heavier and sturdier than other similar products in the market. This connector is specifically designed for connecting photovoltaic solar systems with high mechanical requirements and extreme weather conditions. For permanent installations.
